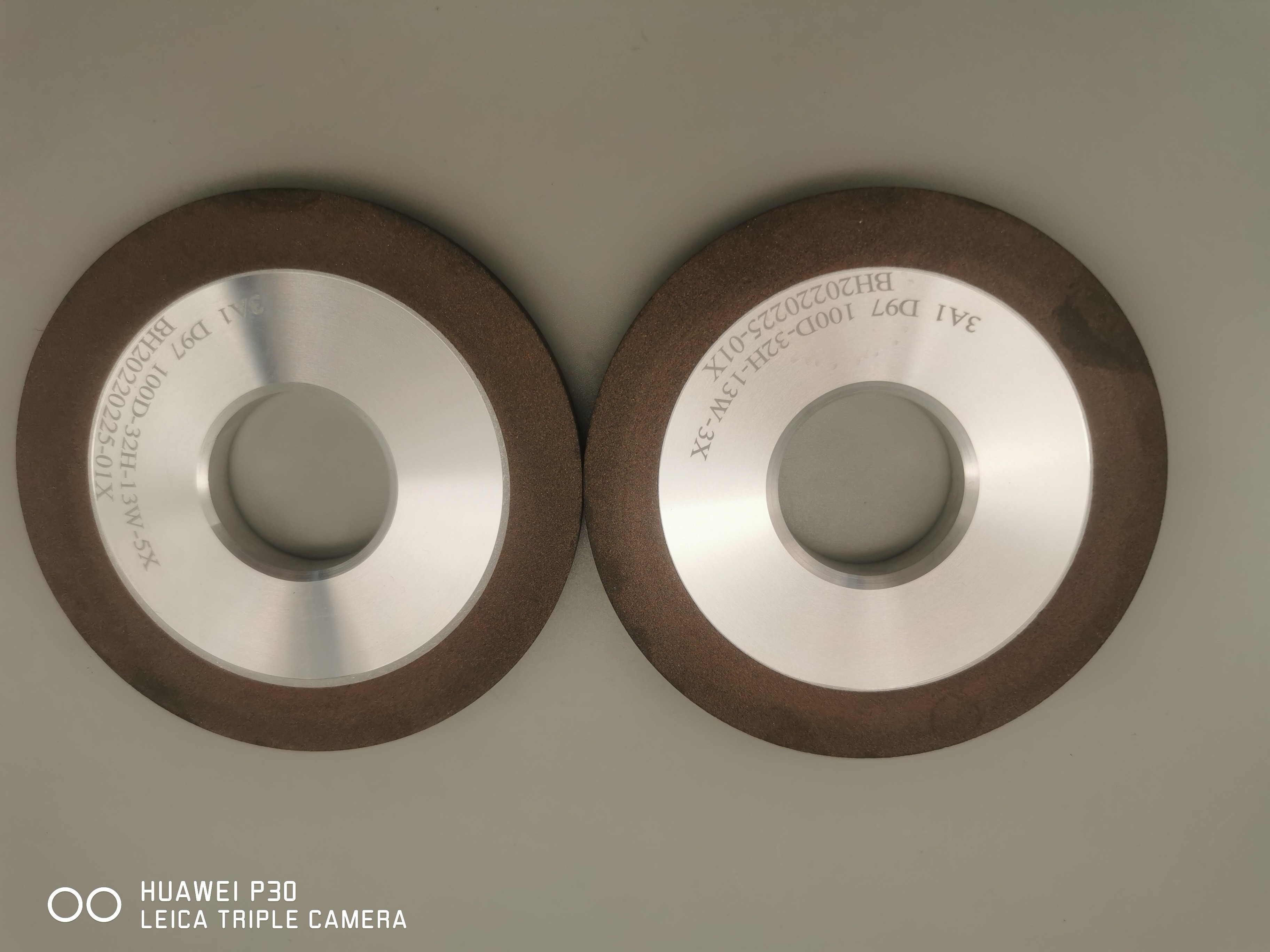

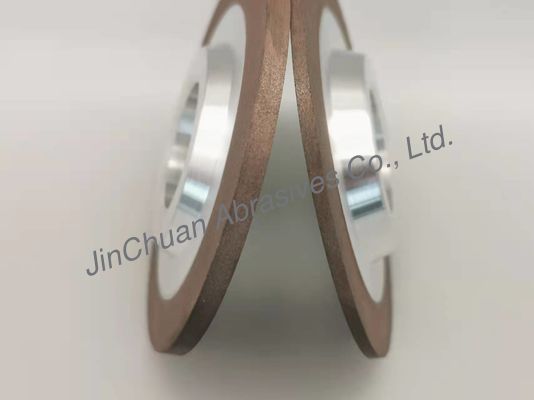

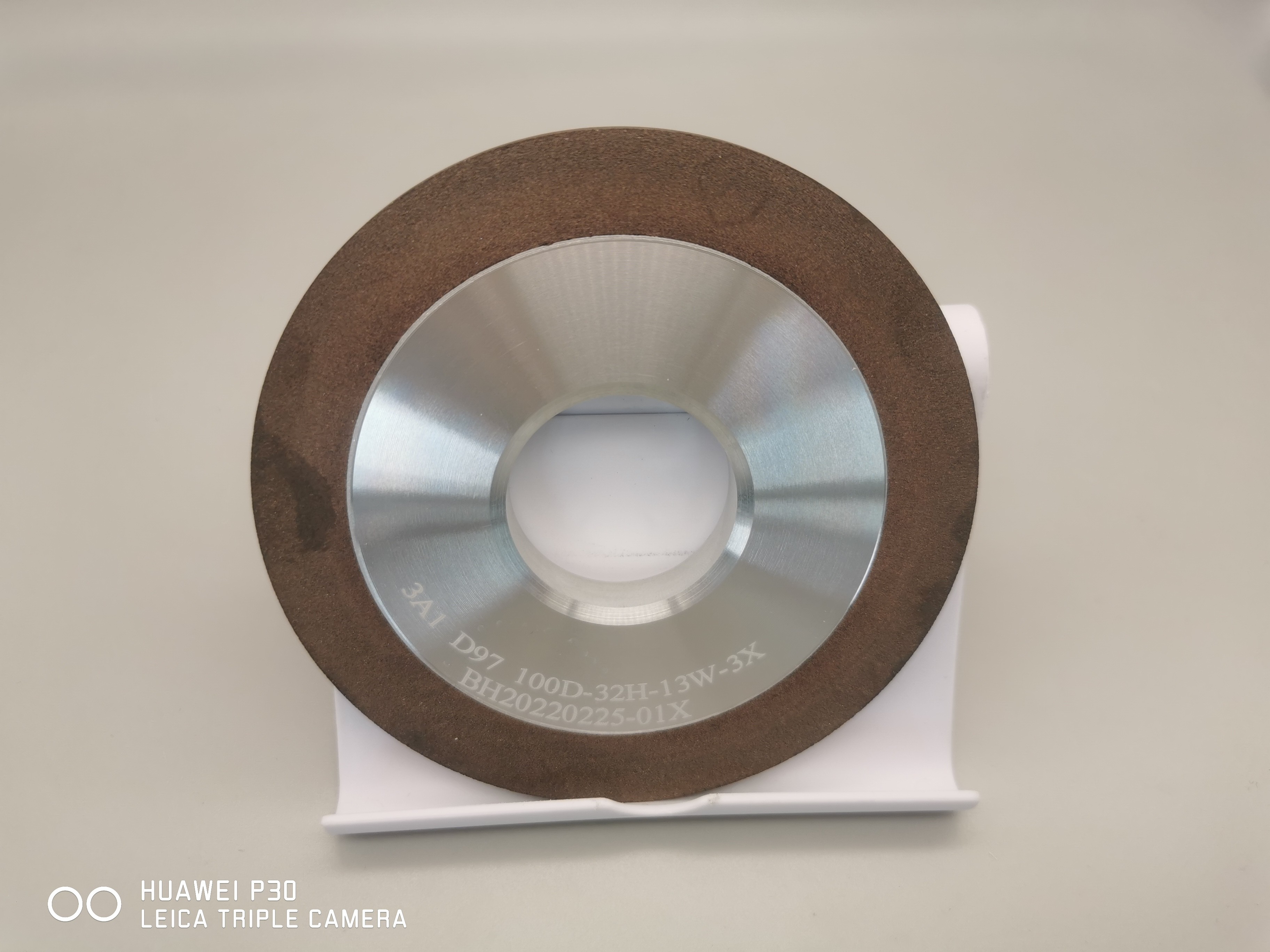

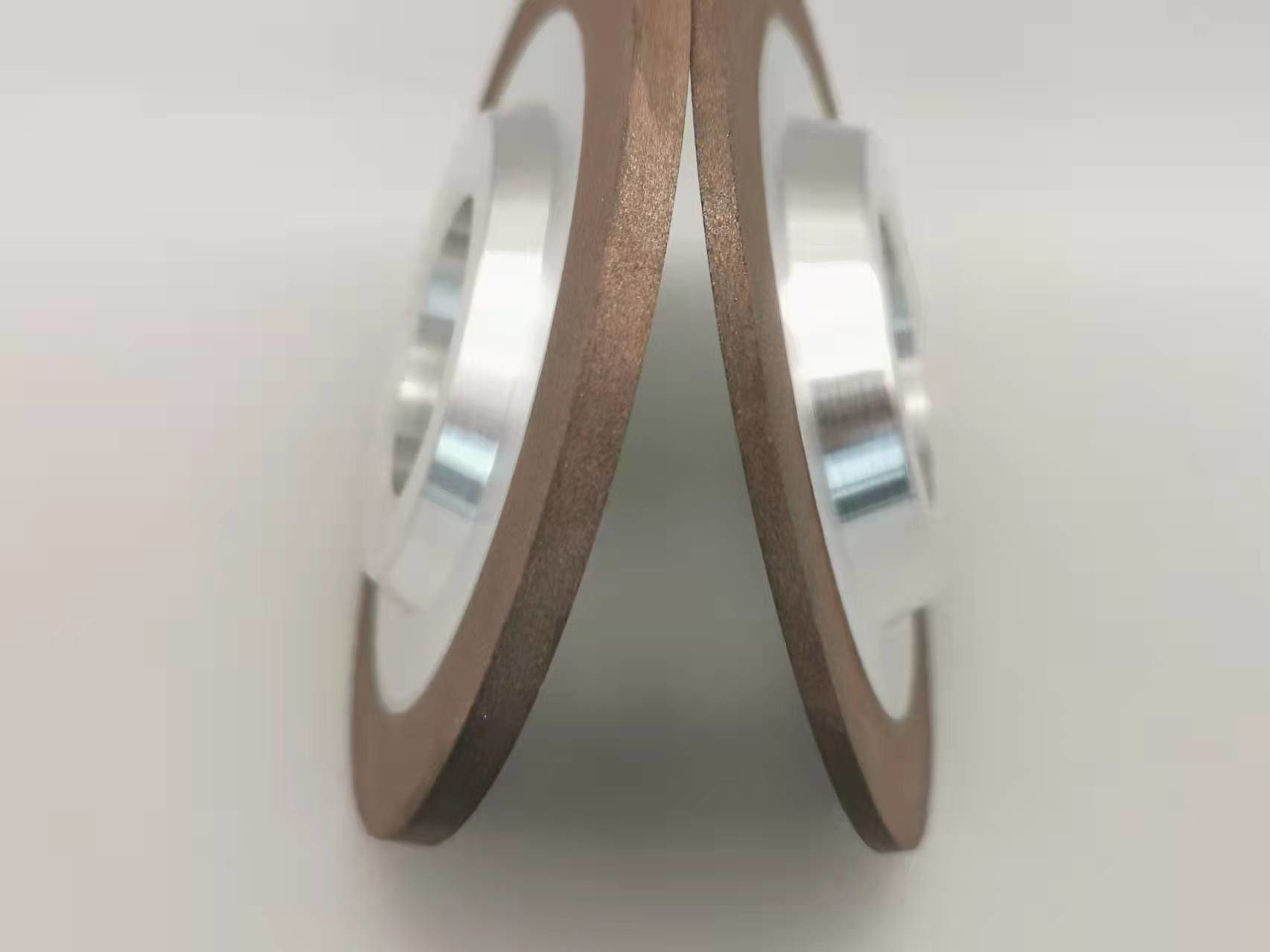

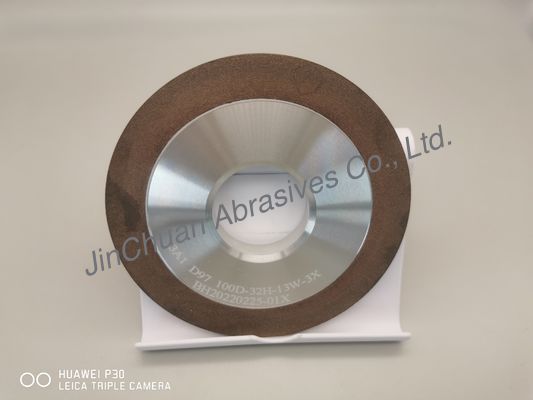

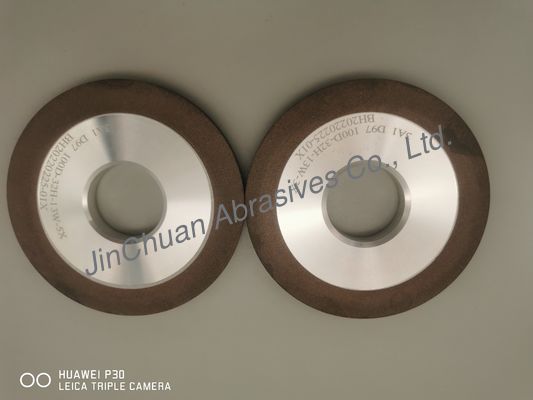

3A1 Resin Bonded Diamond Grinding Wheel 100*32*13*3mm Polishing Dressing Disc
Product Details
| Kemasan: | Kardus | UKURAN BAN: | 100*32*13*3mm |
|---|---|---|---|
| Konsentrasi: | 100% | Warna: | Abu-abu |
| bahan abrasif: | berlian | Pengiriman: | Dengan mengungkapkan |
| Menyoroti |
3A1 Resin Berikat Diamond Grinding Wheel,Polishing Resin Berikat Diamond Grinding Wheel,3A1 resin diamond grinding wheel |
||
Product Description
Resin Berikat Diamond Grinding Wheel Disc 3A1 100*32*13*3mm Polishing Dressing Disc
Roda gerinda berlian ikatan resin dapat dirancang untuk mode penggilingan basah dan kering, menunjukkan kualitas pemotongan bebas yang baik.
Ukuran grit termasukJala 80/100#(D181), 100/120#(D151), 120/140#(D126), 140/170#(D107), 170/200#(D91), 200/230#(D76), 230 /270#(D64), 270/325#(D54), 325/400#(D46)
Roda gerinda berlian ikatan resin cocok untuk menggiling bahan keras dan rapuh logam dan non-logam dengan kandungan besi rendah, seperti karbida disemen, porselen alumina tinggi, kaca optik, batu permata akik, bahan semikonduktor, keramik, batu, dll.
| Ukuran | Diameter | Ketebalan | lubang bagian dalam | Ukuran Pasir |
| 4" | 100mm | 3mm | 32mm |
D240#
|
Keuntungan
ringan, mudah dibawa
Kekasaran dan kerataan permukaan yang sangat baik
Kecepatan pemrosesan tinggi bekerja cepat
Perawatan suhu rendah dari roda gerinda, siklus produksi pendek, peralatan dan proses pasokan yang nyaman, cepat dan sederhana
Aplikasi
Terutama digunakan untuk menggiling paduan keras tinggi, bahan non-logam, memotong paduan keras keras dan rapuh, mineral non-logam, dll. Seperti karbida disemen, keramik, batu akik, kaca optik, bahan semikonduktor dan besi cor tahan aus, batu , dll. Khusus digunakan untuk semua jenis mesin sbrssives
Jika Anda perlu menyesuaikan, berikan informasi berikut:
1. Dimensi, termasuk diameter luar, bukaan, ketebalan, lebar dan ketebalan lapisan abrasif;
2. Partikel dan konsentrasi pasir abrasif;
3. Perekat;
4. Aplikasi roda;
5. Gambar dan gambar roda;
Kami kemudian dapat merancang dan mengutip untuk Anda
Product Highlights
Resin Berikat Diamond Grinding Wheel Disc 3A1 100*32*13*3mm Polishing Dressing Disc Roda gerinda berlian ikatan resin dapat dirancang untuk mode penggilingan basah dan kering, menunjukkan kualitas pemotongan bebas yang baik. Ukuran grit termasukJala 80/100#(D181), 100/120#(D151), 120/140#(D126), 140...
