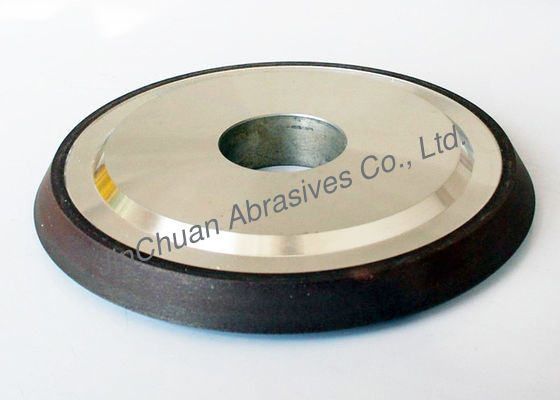

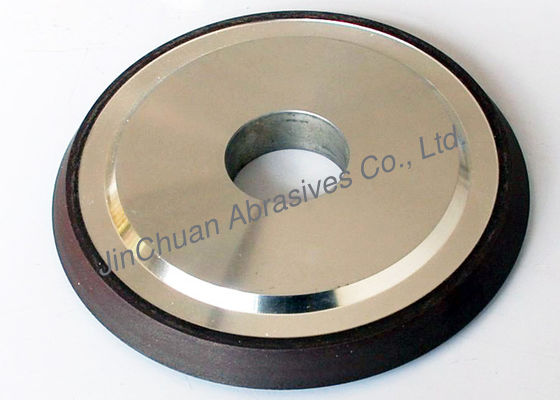

Resin Bond Berlian Lapping Disc Untuk Bahan Logam Keras / Gaya Lurus Diamond & Roda CBN
Product Details
| Packing: | Kotak karton | warna: | Kuning |
|---|---|---|---|
| Ukuran: | 127mm | Thinckness: | 20mm |
| Lubang: | 10mm | Konsentrasi: | 100% |
| Menyoroti |
roda gerinda resinoid,roda pengasah karbida |
||
Product Description
| D | T | H | RPM | GRIT-Berlian | GRIT-CBN | ||
| 101.6 | 1,5875 | 31.75 | 4700 | 100 | 150 | 150 | |
| 101.6 | 3.175 | 31.75 | 4700 | 100 | 150 | 220 | 150 |
| 101.6 | 6.35 | 31.75 | 4700 | 100 | 150 | 220 | 150 |
| 127 | 3.175 | 31.75 | 4500 | 150 | 150 | ||
| 127 | 6.35 | 31.75 | 4500 | 150 | 150 | ||
| 152.4 | 1,5875 | 31.75 | 4300 | 100 | 150 | 150 | |
| 152.4 | 3.175 | 31.75 | 4300 | 100 | 150 | 220 | 150 |
| 152.4 | 6.35 | 31.75 | 4300 | 100 | 150 | 220 | 150 |
| 152.4 | 9.525 | 31.75 | 4300 | 100 | 150 | 150 | |
| 152.4 | 12.7 | 31.75 | 4300 | 100 | 150 | 220 | 150 |
| 177.8 | 6.35 | 31.75 | 4300 | 100 | 150 | 220 | 150 |
| 177.8 | 9.525 | 31.75 | 4300 | 150 | 150 | ||
| 177.8 | 12.7 | 31.75 | 4300 | 100 | 150 | 150 | |
| 254 | 6.35 | 76.2 | 300 | 150 | 150 | ||
| 254 | 12.7 | 76.2 | 3000 | 150 | |||
| 304.8 | 12.7 | 127 | 2500 | 150 | 150 | ||
| 355.6 | 12.7 | 127 | 2200 | 150 | |||
Resin berikat berlian roda gerinda digunakan untuk menggiling kaca, marmer dan baja. Roda berlian dapat dibuat menjadi berbagai bentuk dan ukuran sesuai dengan berbagai penggunaan dan bentuk penggilingan.
Resin gerinda berikat berlian memiliki karakteristik memotong gigi dan mengasah diri. Terutama digunakan untuk menggiling paduan keras, bahan magnetik, bahan kaca dan bahan paduan.
Fitur Produksi
Roda Terbuat dari berlian berkualitas tinggi dan resin yang dimodifikasi khusus
Peralatan dan seni produksi paling canggih
Keuntungan
Kekasaran permukaan dan kerataan yang luar biasa
Kecepatan pemrosesan tinggi bekerja cepat
Aplikasi
Khusus digunakan untuk semua jenis mesin sbrssives
Dapat disesuaikan sesuai permintaan pabean
kaca optik, batu permata, semi-konduktor, magnet, baja keras,
tugsten carbid, ujung gerinda, bentuk gerinda pada langkah kasar dan halus
Product Highlights
Diamond Grinding Wheel Resion Digunakan Untuk Bahan Logam Keras Yang Abrasif D T H RPM GRIT-Berlian GRIT-CBN 101.6 1,5875 31.75 4700 100 150 150 101.6 3.175 31.75 4700 100 150 220 150 101.6 6.35 31.75 4700 100 150 220 150 127 3.175 31.75 4500 150 150 127 6.35 31.75 4500 150 150 152.4 1,5875 31.75 ...
