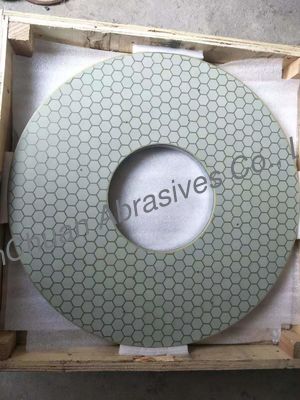

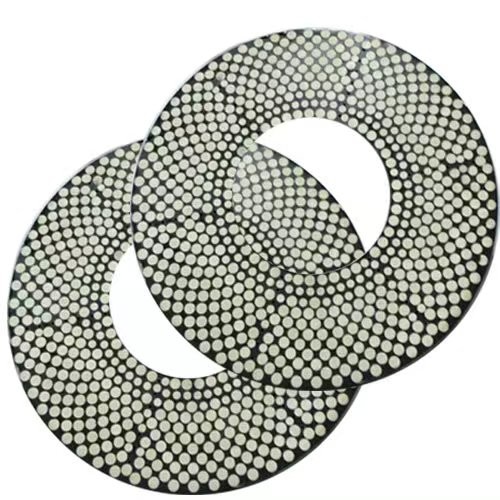

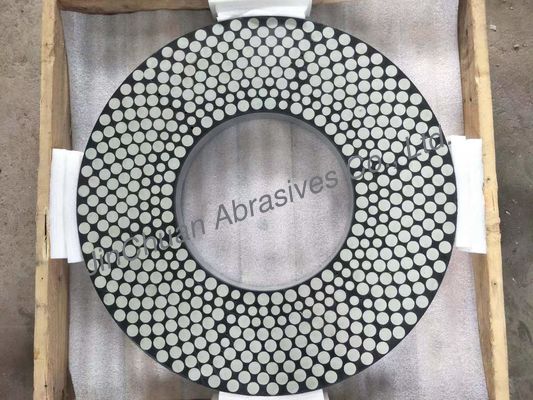

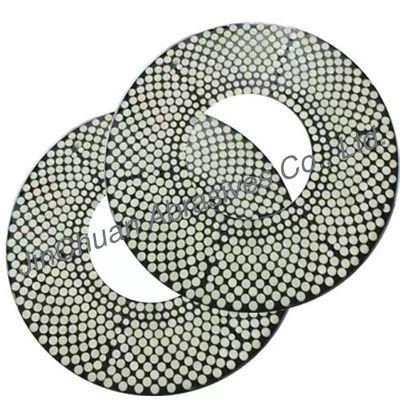

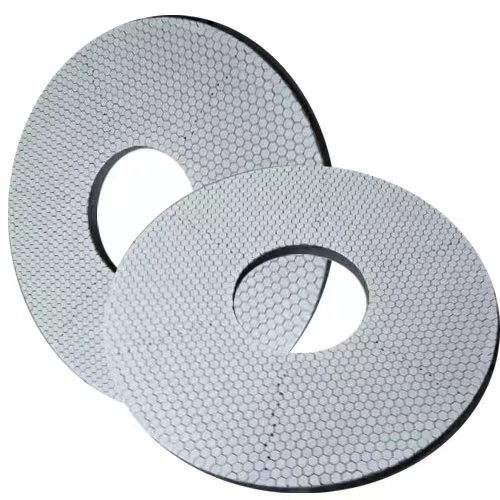

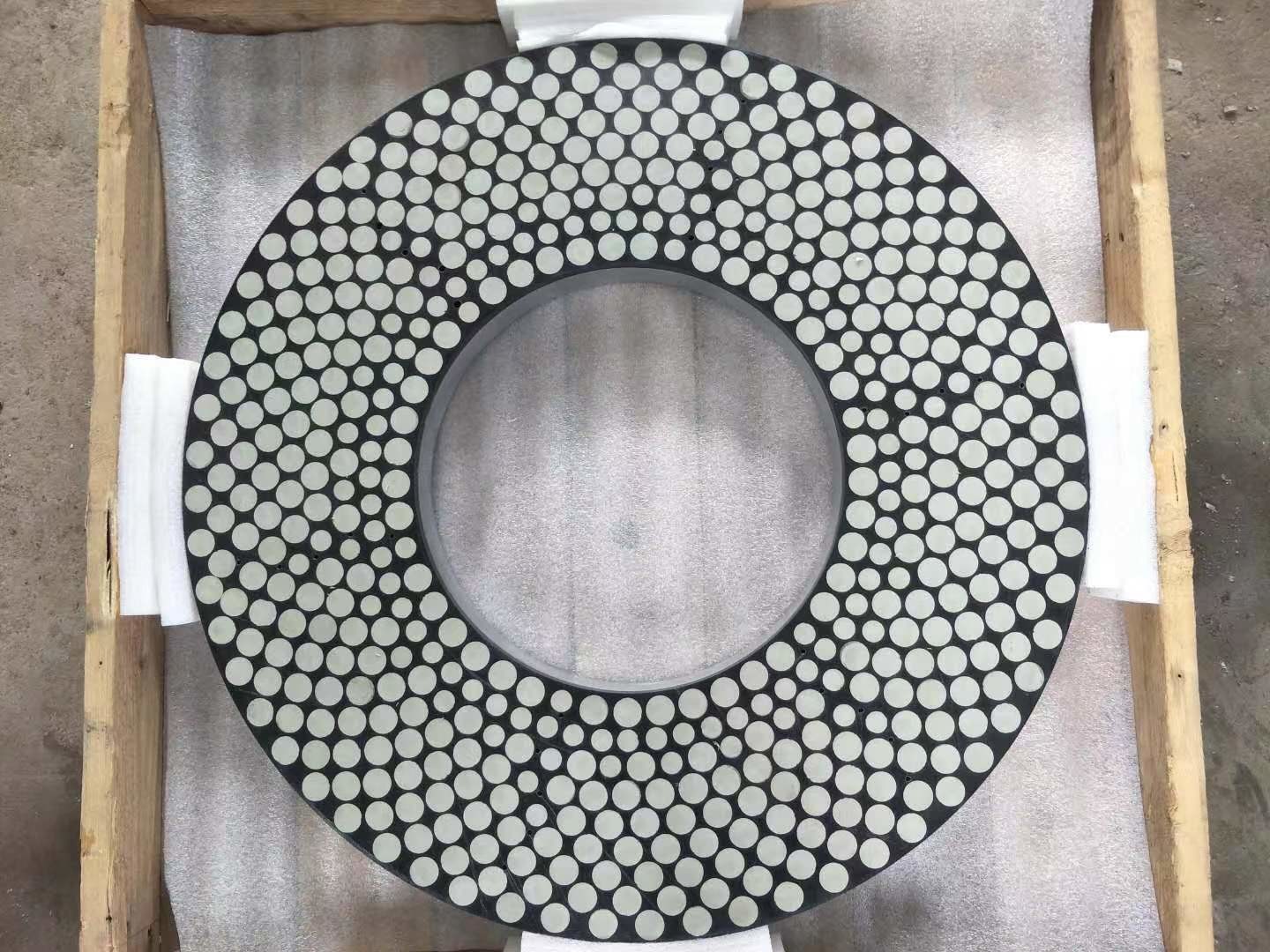

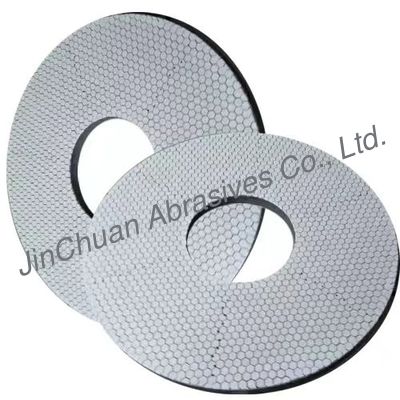

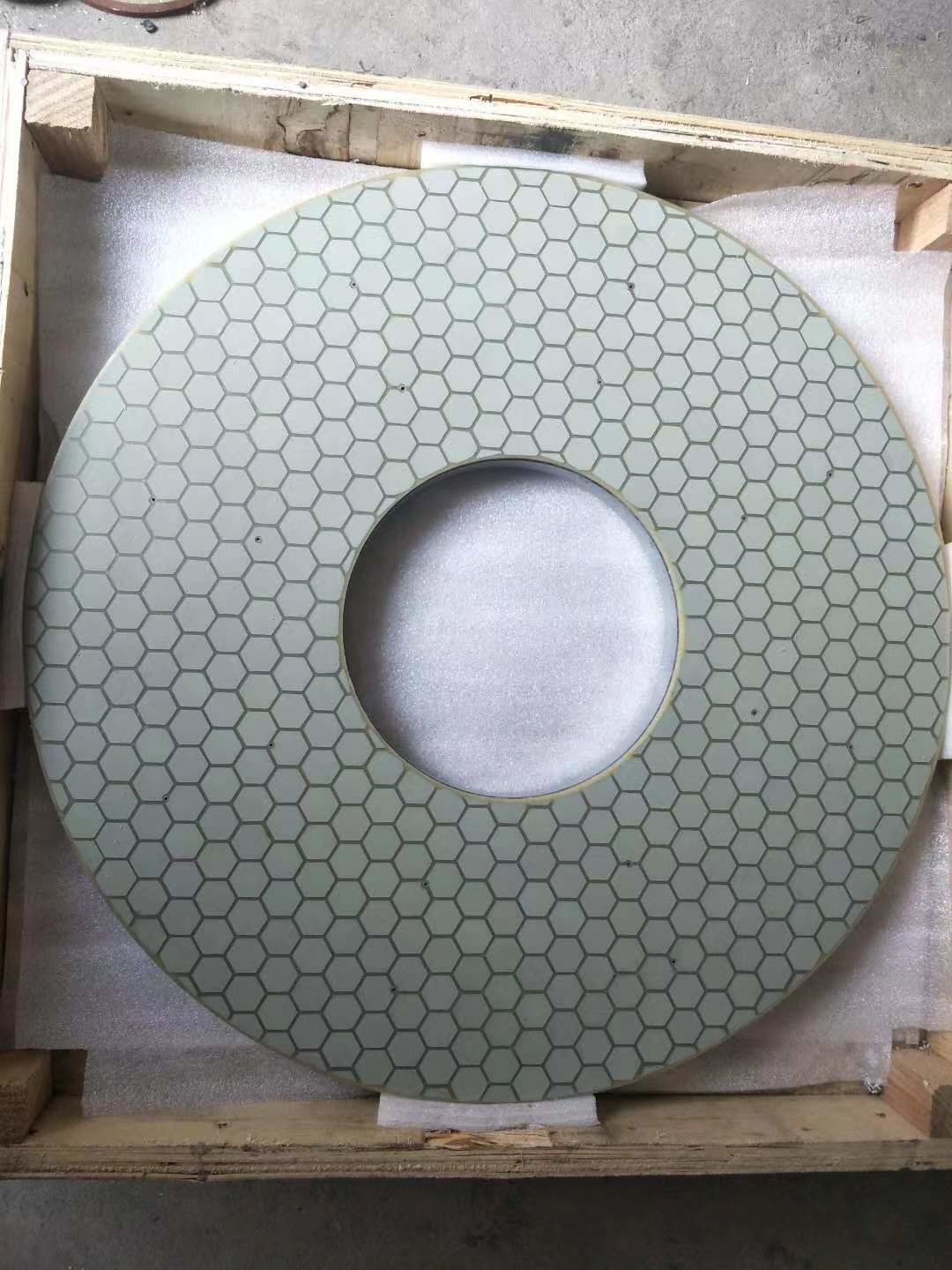

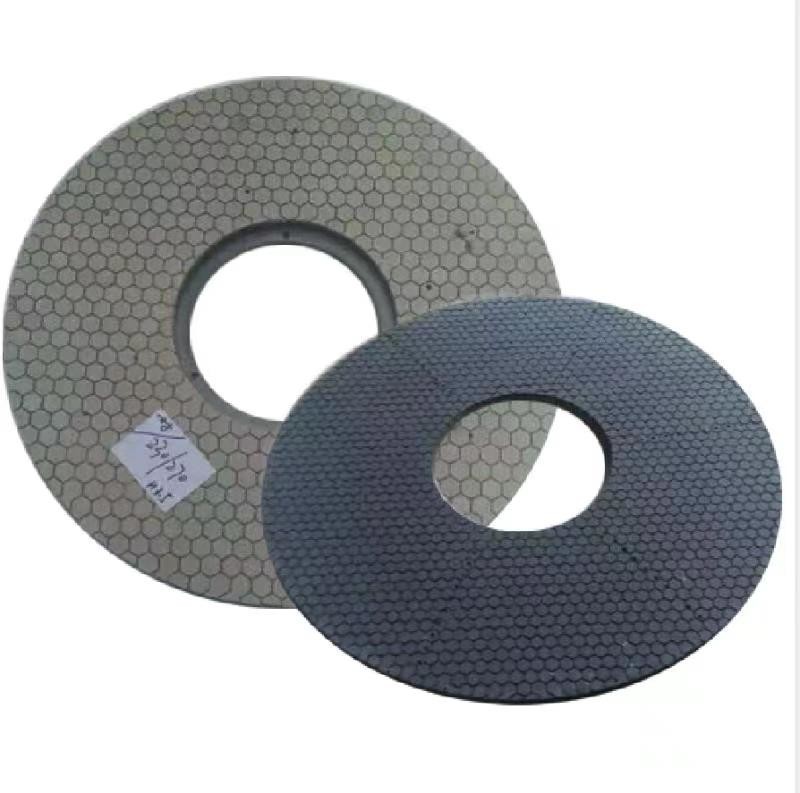

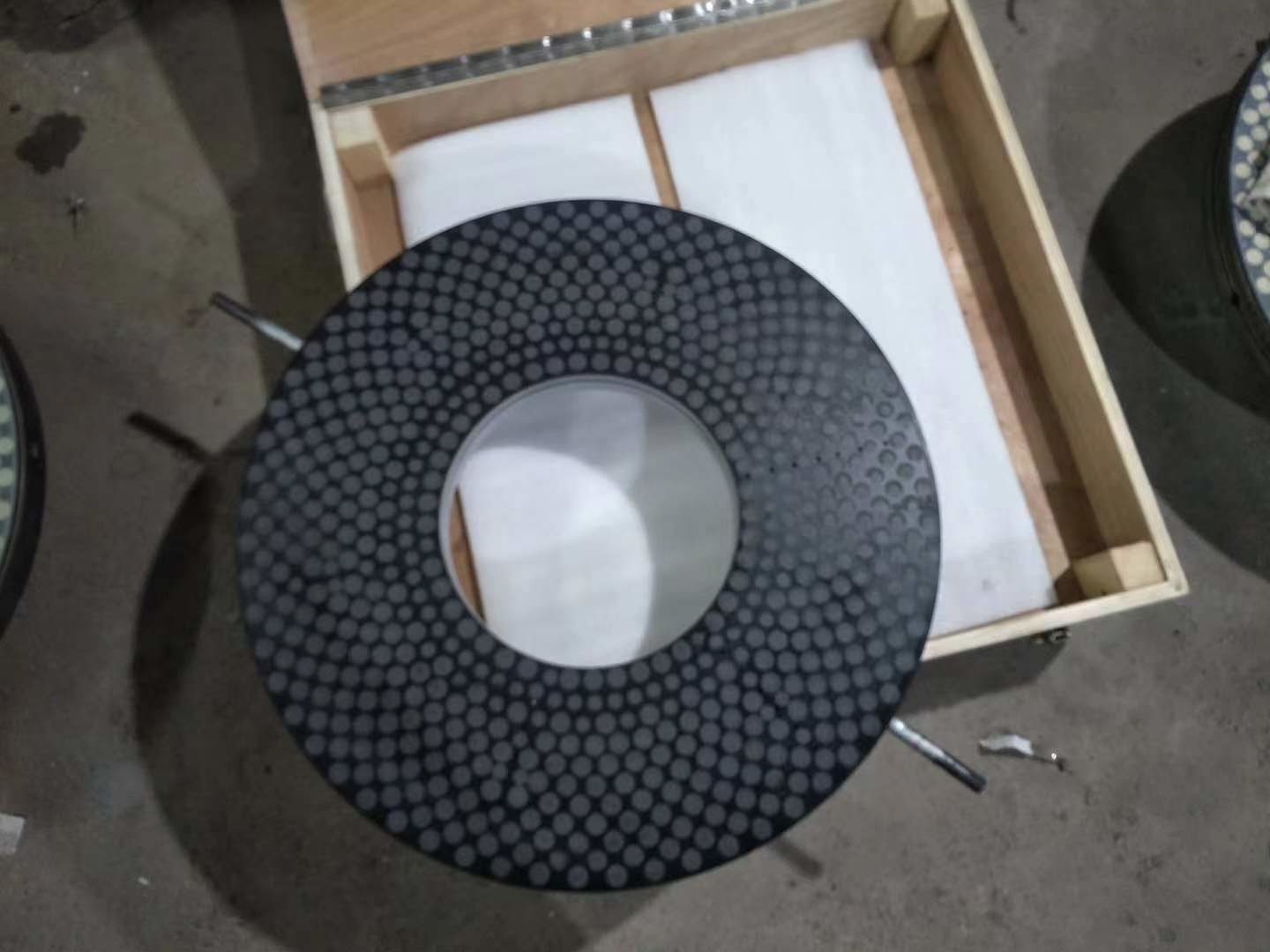

Vitrified Bond Double Disc Grinding Wheel Untuk PCD PCBN grinder disc
Product Details
| Kemasan: | kardus | Ukuran ban: | 200-1200mm |
|---|---|---|---|
| Konsentrasi: | 100% | Warna: | Abu-abu |
| Bahan abrasif: | Berlian CBN | Pengiriman: | dengan mengungkapkan |
| Menyoroti |
Disk penggiling Bond Vitrified,PCD grinder disc,PCBN grinder disc |
||
Product Description
Vitrified Bond Double Disc Grinding Wheel Untuk PCD PCBN Grinder Disc
Fitur utama
●Semi-halus, proses penggilingan halus dari penggilingan sisi ganda atau tunggal
●Toleransi Persyaratan/Paralelisme<0,003mm, toleransi datar<0,003mm, Ra<0,05 μm
●Ketepatan benda kerja yang tinggi, kesalahan ukuran adalah 1-2μm pada bagian cakram tunggal
●Lingkungan kerja hemat biaya pemrosesan rendah
Aplikasi cakram gerinda ganda berikat vitrifikasi
Terutama digunakan untuk memproses bagian-bagian penting seperti komponen penyegelan (silikon karbida, keramik alumina, keramik zirkonia, sermet, dll.) Alat (karbida, PCD, PCBN, baja berkecepatan tinggi, dll), katup keramik, semua jenis serbuk me-talurgi dan seri karbida.
Roda gerinda berlian, cocok untuk menggiling karbida, baja tungsten, PCBN kekerasan tinggi benda kerja, keramik, kaca optik, kaca safir dan bahan bukan logam lainnya.
Roda gerinda CBN, cocok untuk baja berkecepatan tinggi, baja bantalan, baja perkakas, baja tahan karat, metalurgi serbuk, besi tuang gerinda presisi, dan bahan keras lainnya.
| modle | sketsa profil | ukuran umum | |
| 1A2T | |
1A2T D*T*H*W*X | |
| D | 250-1200 | ||
| W | 10-350 | ||
| X | 3-10 | ||
| 6A2B | |
6A2B D*T*H*W*X | |
| D | 250-1200 | ||
| W | 10-350 | ||
| X | 3-10 | ||
Jika Anda perlu menyesuaikan, berikan informasi berikut:
1. Dimensi, meliputi diameter luar, aperture, tebal, lebar dan tebal lapisan abrasif;
2. Partikel dan konsentrasi pasir yang abrasif dan abrasif;
3. Perekat;
4. Aplikasi roda;
5. Gambar dan gambar roda;
Kami kemudian dapat merancang dan mengutip untuk Anda
